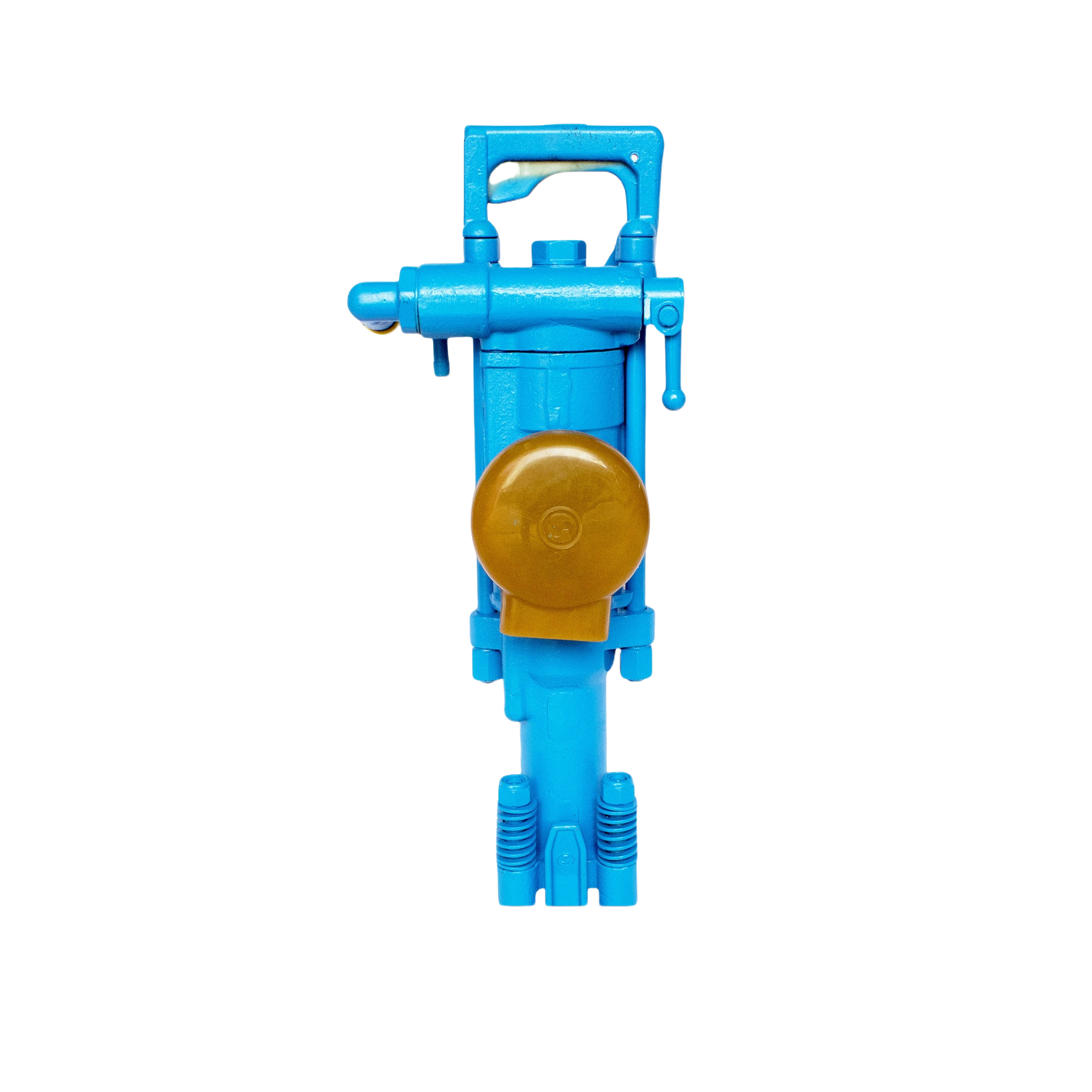

YT23 Pneumatic - leg Rock Drill

Individually packaged. Colors are optional
Send Inquiry
Description
Argument
Products Description

The YT23 pneumatic-leg rock drill is a rock drilling equipment with outstanding performance and wide applications. It is designed to meet the requirements of efficient and precise drilling operations in fields such as mining, tunnel excavation, water conservancy and hydropower projects, and building foundation construction. With advanced technology, reliable quality and user-friendly design, it has become a crucial tool in numerous engineering projects, helping to promote the smooth progress of engineering construction and ensuring excellent construction quality.

Tags:

Technical parameter

Weight: 24 kg

Overall Length: 604 mm

Operating Air Pressure: 0.35 - 0.63 MPa

Cylinder Diameter: 70 mm

Piston Stroke: 70 mm

Rock Drilling Impact Frequency: ≥ 27 Hz

Impact Energy: ≥ 65 J

Rock Drilling Air Consumption: ≤ 50 L/s

Drilling Depth: 5 m

Shank tail specification: 22 × 108 mm
